Industrial RG59 RG6 WF100 Cable Stripper Spanner Tool

CABLECON Insulation Stripper Spanner for RG59, RG6 and WF100 Connectors

Extremely easy to operate, even for amateurs: Press the button, insert (clean, trimmed) cable until it stops, release the button and rotate the tool approx. 5-10x around the cable, remove the cable and remove the remainder of the insulation. You will be left with an exposed inner conductor 6.5 mm long and a braid freed from the sheath that is also 6.5 mm long.

Handy and convenient insulation stripper and key for F-connector (HEX 11) in one tool. Supported cable types: RG59, RG6. 2 blades for stripping the outer conductor and the inner conductor simultaneously in one step. Both blades are permanently installed; the blade distance is 6.5 mm – ideal for crimp and compression plugs.

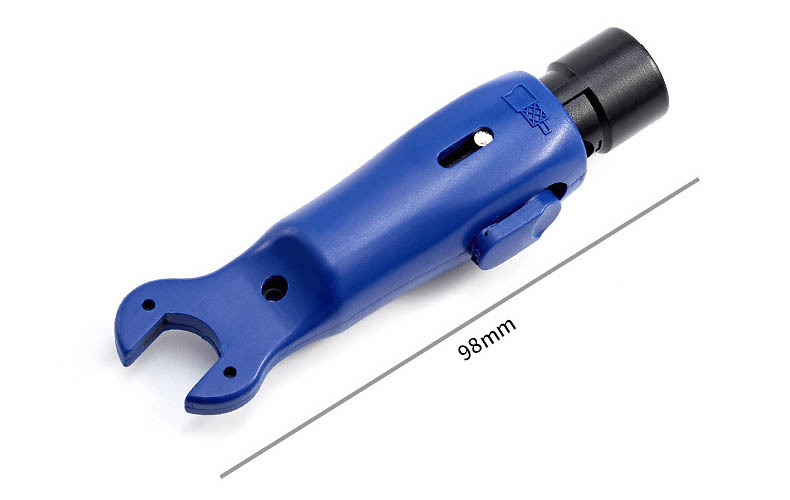

Dimension:

Features:

1.1 Extremely easy to operate

1.2 2 blades for stripping the outer conductor and the inner conductor simultaneously in one step.

RG59 RG6 cable stripper tool

WF100 coaxial cable spanner

industrial network crimping tool

Industrial RG59 RG6 WF100 Cable Stripper Spanner Tool Images
